NEW: ICAO Low Intensity Type A & B Dual Fixture

The Federal Office of Civil Aviation (FOCA) is responsible for the inspection and approval of aviation obstacles. In April 2017 FOCA issued a new guideline for aviation obstacles.

According to the new Regulation AD I-006 on Aviation Obstacles, following requirements apply to low intensity obstruction lights:

Infrared: Wavelength (λ) 850 nm. For low intensity obstruction lighting the radiant intensity (Ie) must be in the range of 150 to 1’200 mW/sr.

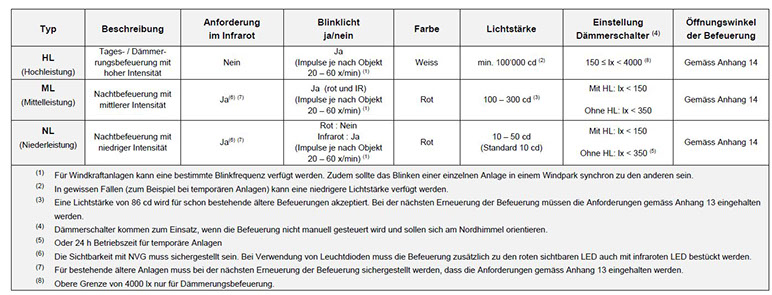

Source: FOCA guidelines, April 2017, page 16

The Avlite Dual Fixture provides a compact solution to FOCA requirements for low Intensity lighting by mounting a red and an infrared light fixture next to each other.

Specifications of the lights are as follows:

Red Light

Model AV-OL-ILAB-UM-R-07

Type ICAO Type A&B Low, FOCA Lux Settings

Input Power 110 – 230 VAC, 12-48 VDC or Solar

Light Intensity User adjustable 10 / 32cd

Flashing Non

Light Sensor Integrated (350 lux= on, 525 lux= off)

Infrared Light

Model AV-OL-ILAB-UM-IR-18

Type ICAO Type A&B Low, FOCA Lux Settings

Input Power 110 - 230 VAC, 12-48 VDC or Solar

Light Intensity 150 mW/sr

Flashing 20 fpm (flashes per minute), 0.5s on, 2.5s off

Light Sensor Ja (350 lux= ein, 525 lux= aus)

Left: Avlite Dual Fixture with IR and red light; Middle: Avlite Dual Fixture bottom side, 3/4 inch pipe thread; Right: board of Avlite Dual Fixture
